Bridge Rectifiers | Status :
Active

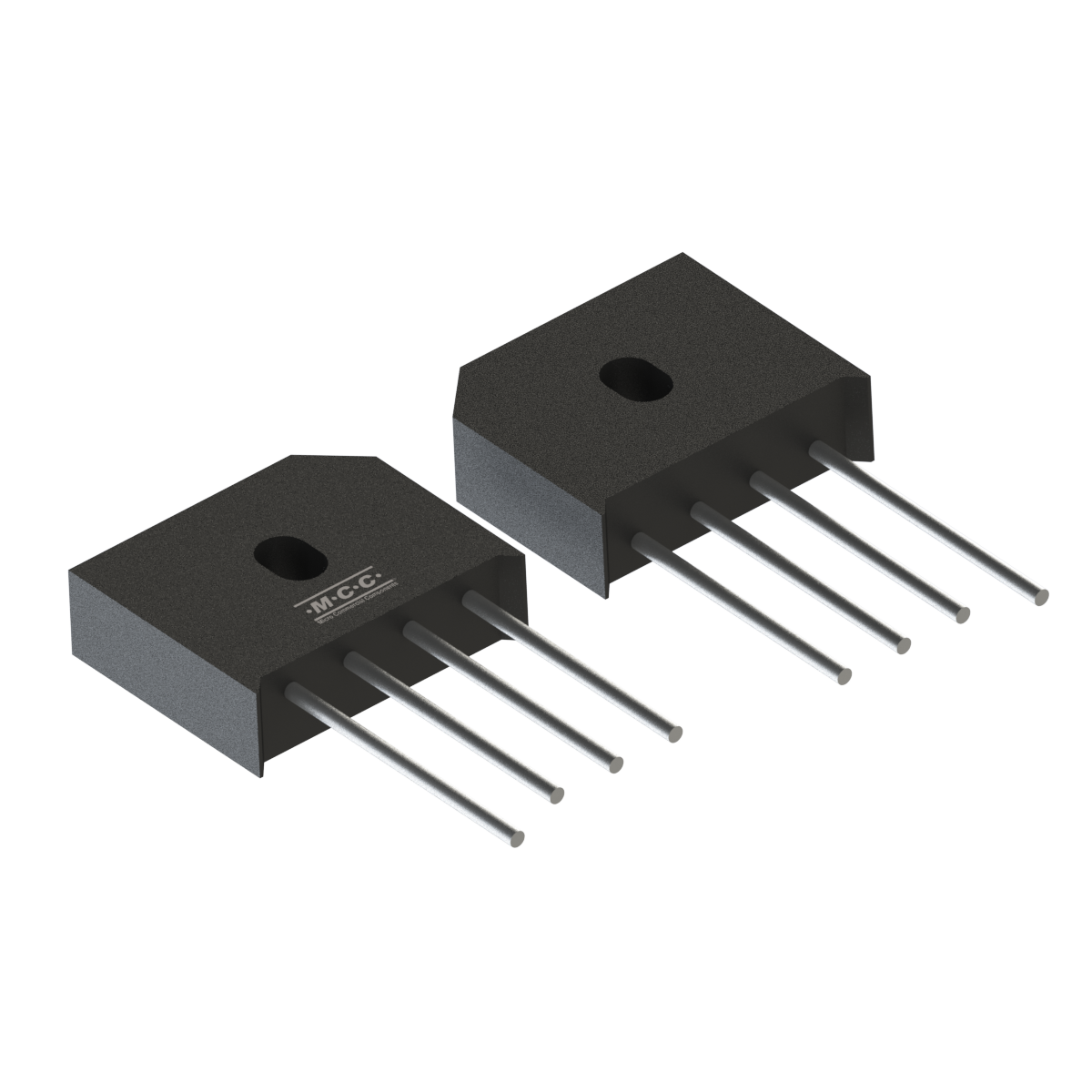

RS806
- Package Type:RS-6
- Packing Info:Bulk: 400pcs/Box, 2.4K/Ctn .
- Category:Bridge Rectifiers
- MPN:RS806-BP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| RS806 | 1-Phase Bridge | 8 | 800 | 1.1 | 10 | 300 | 4 | 800 | 150 |
| Part Number RS806 | Number of Functions 1-Phase Bridge | IF(AV)(A) 8 | VRWM (V) 800 |
VF (V) [max]@IF(A) 1.1 |
IR (uA) [max] @ VR 10 |
IFSM (A) 300 | IF(A) 4 | VR (V) 800 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MTBF | FIT |
|---|---|---|
|
22483.04 | 5.1 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
