Bridge Rectifiers | Status : Obsoleted

RB154

Last Time Ship Date:11-08-2014 EOL Notice
  • Package Type:RB-15
  • Packing Info:Bulk: 1K/Box, 15K/Ctn .;
  • Category:Bridge Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
RB154 1-Phase Bridge 1.5 400 1 10 50 1.5 400 125
Part Number RB154 Number of Functions 1-Phase Bridge IF(AV)(A)  1.5 VRWM (V)  400 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  10 		IFSM (A)  50 IF(A)  1.5 VR (V)  400 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g)

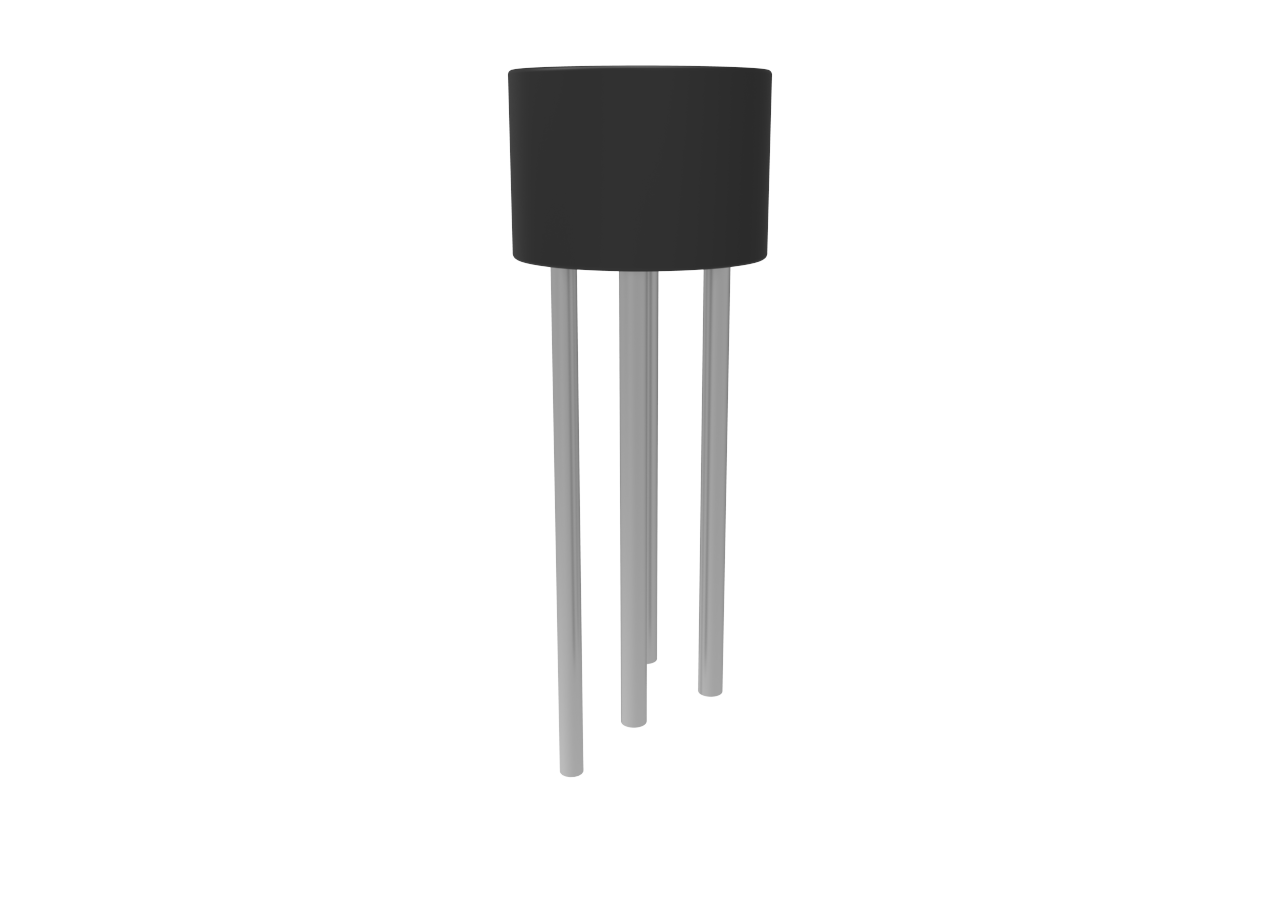

RB154 RB-15 Package Type Image RB-15 1.0700

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
