Bridge Rectifiers | Status : Obsoleted

PB32

Last Time Ship Date:N/A EOL Notice
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
PB32 1-Phase Bridge 3 200 1.2 10 50 1.5 200 125
Part Number PB32 Number of Functions 1-Phase Bridge IF(AV)(A)  3 VRWM (V)  200 VF
(V) [max]@IF(A)  1.2 		IR (uA)  [max] @
VR  10 		IFSM (A)  50 IF(A)  1.5 VR (V)  200 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

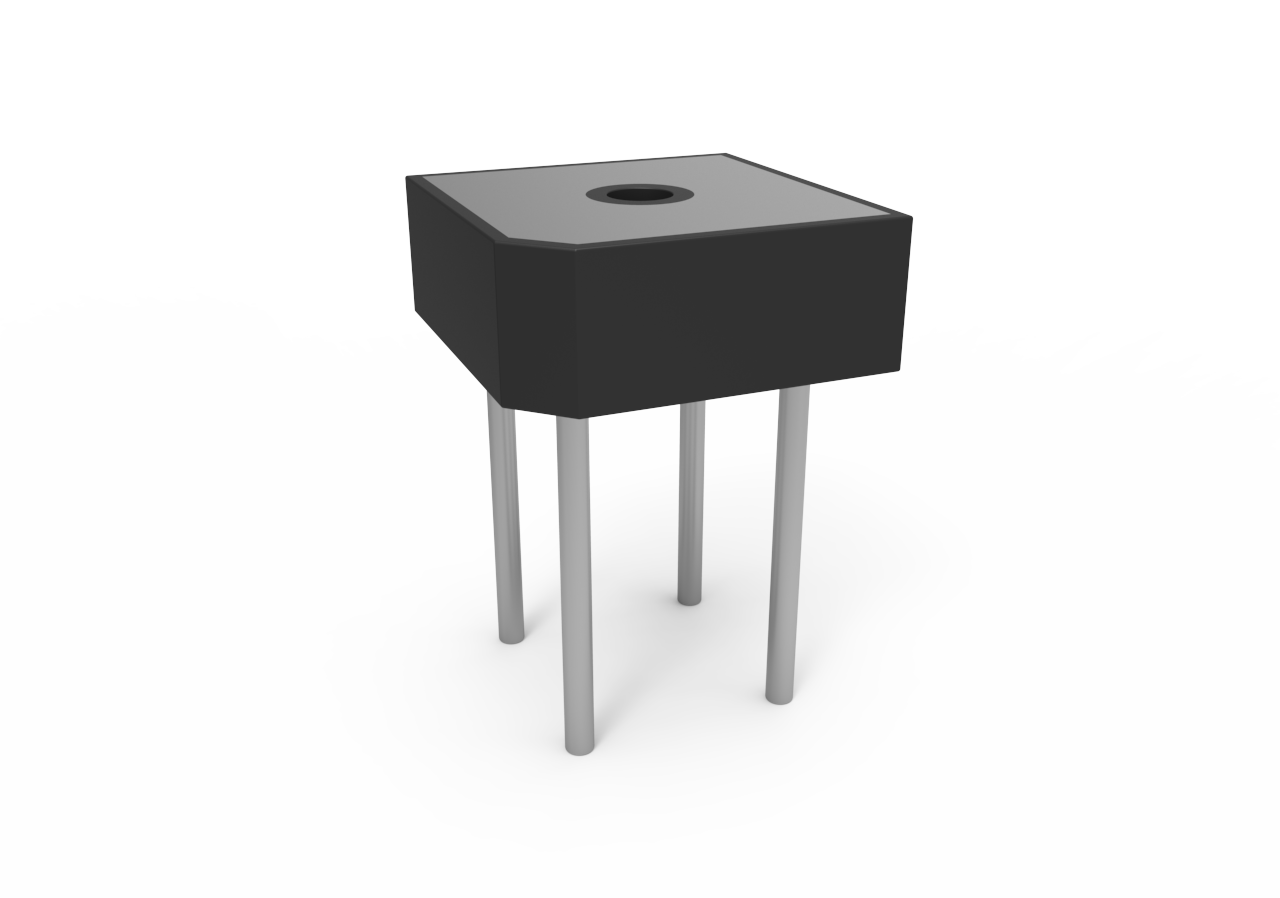

PB32 PB-3 Package Type Image PB-3 2.5000 PB32

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
