Bridge Rectifiers | Status : Active

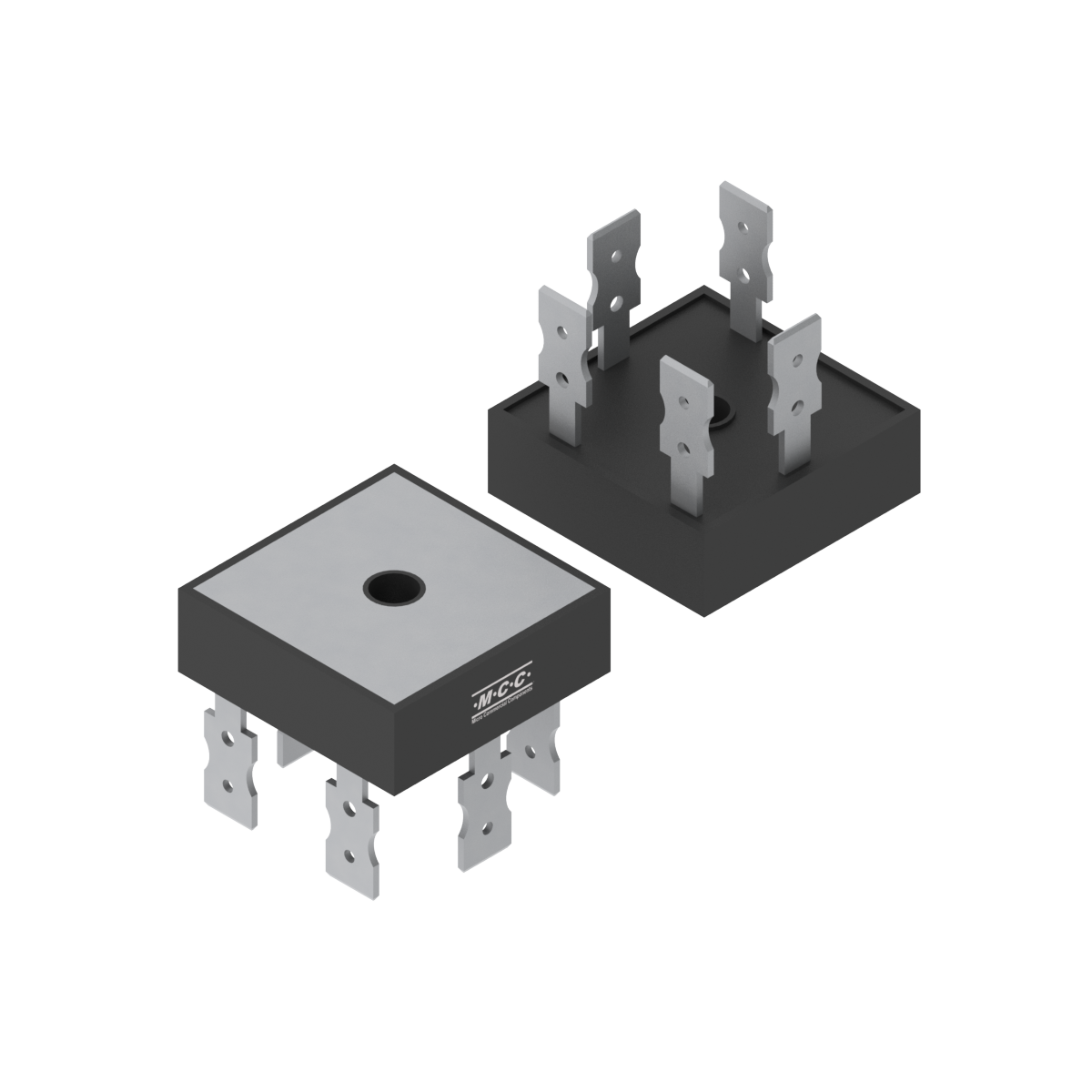

MT5016A

  • Package Type:MT-35A
  • Packing Info:Bulk: 50PCS/BOX
  • Category:Bridge Rectifiers
  • MPN:MT5016A-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MT5016A 3-Phase Bridge 50 1600 1.2 10 500 25 1600 150
Part Number MT5016A Number of Functions 3-Phase Bridge IF(AV)(A)  50 VRWM (V)  1600 VF
(V) [max]@IF(A)  1.2 		IR (uA)  [max] @
VR  10 		IFSM (A)  500 IF(A)  25 VR (V)  1600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MT5016A MT-35A MT-35A 17.3630 MT5016A

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
051518-1 MCC will use laser mark instead of ink mark for power bridge rectifiers PDF 05/15/2018
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
