Bridge Rectifiers | Status : NRND

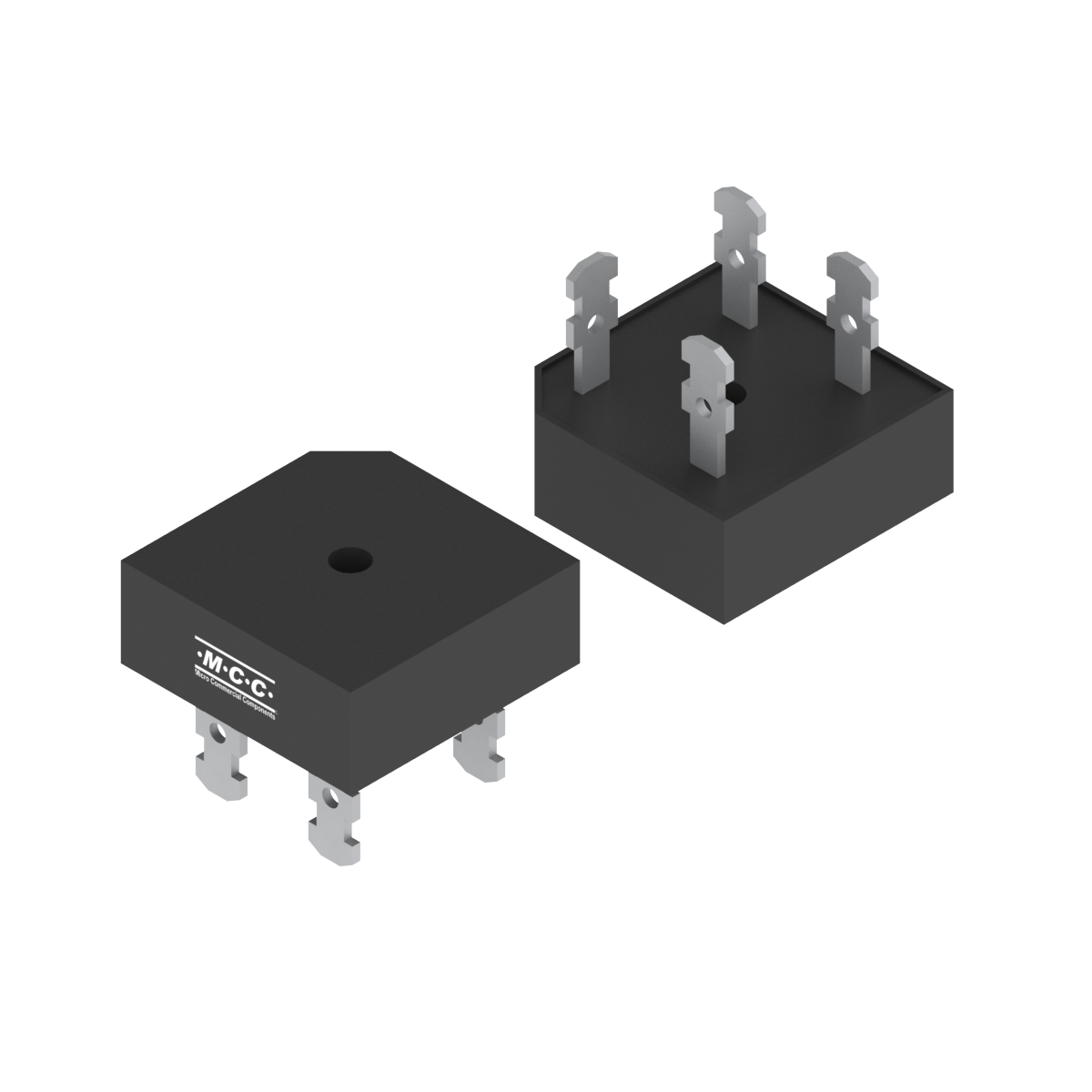

MP502

  • Package Type:MP-50
  • Packing Info:Bulk: 50pcs/Box, 400Pcs/Ctn .;
  • Category:Bridge Rectifiers
  • MPN:MP502-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MP502 1-Phase Bridge 50 200 1.2 10 500 25 200 150
Part Number MP502 Number of Functions 1-Phase Bridge IF(AV)(A)  50 VRWM (V)  200 VF
(V) [max]@IF(A)  1.2 		IR (uA)  [max] @
VR  10 		IFSM (A)  500 IF(A)  25 VR (V)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MP502 MP-50 MP-50 17.0000 MP502

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
051518-1 MCC will use laser mark instead of ink mark for power bridge rectifiers PDF 05/15/2018
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
