Bridge Rectifiers | Status : Obsoleted

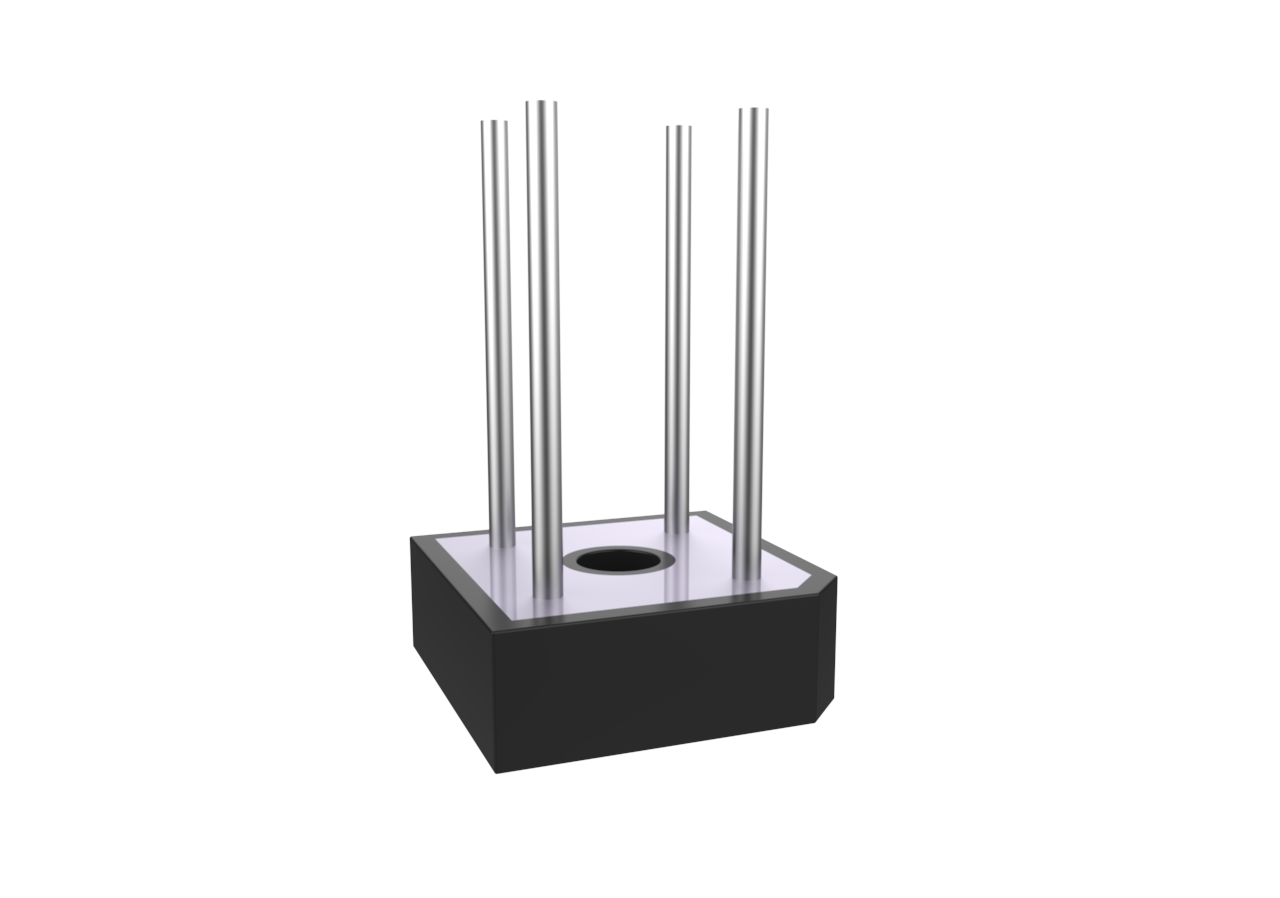

MB82

Last Time Ship Date:02-01-2012 EOL Notice
  • Package Type:BR-6
  • Packing Info:Bulk: 200pcs/Box, 1.6K/Ctn;
  • Category:Bridge Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MB82 1-Phase Bridge 8 200 1.1 10 125 4 200 125
Part Number MB82 Number of Functions 1-Phase Bridge IF(AV)(A)  8 VRWM (V)  200 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  125 IF(A)  4 VR (V)  200 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g)
MB82 BR-6 Package Type Image BR-6 5.0000

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
