Bridge Rectifiers | Status :
Obsoleted

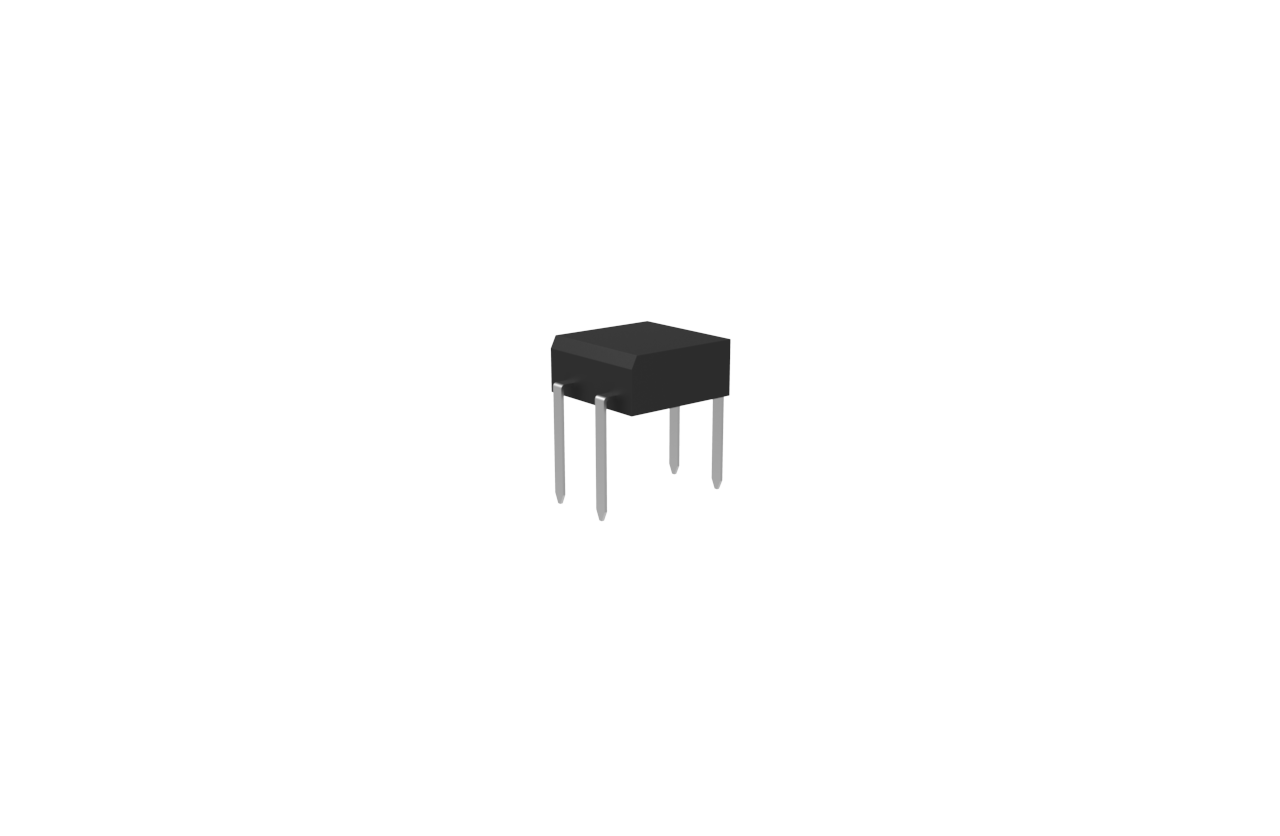

MB6M
Last Time Ship Date:05-31-2016
EOL Notice
- Package Type:MB-1
- Packing Info:Tube :100pcs/Tube, 5K/Box, 30K/Ctn;
- Category:Bridge Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| MB6M | 1-Phase Bridge | 0.5 | 600 | 1 | 5 | 35 | 0.4 | 600 | 150 |
| Part Number MB6M | Number of Functions 1-Phase Bridge | IF(AV)(A) 0.5 | VRWM (V) 600 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 5 |
IFSM (A) 35 | IF(A) 0.4 | VR (V) 600 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| MB6M | MB-1 |
MB-1
|
0.2200 | MB6M |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 0.00 | 0.0 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
