Bridge Rectifiers | Status : Active

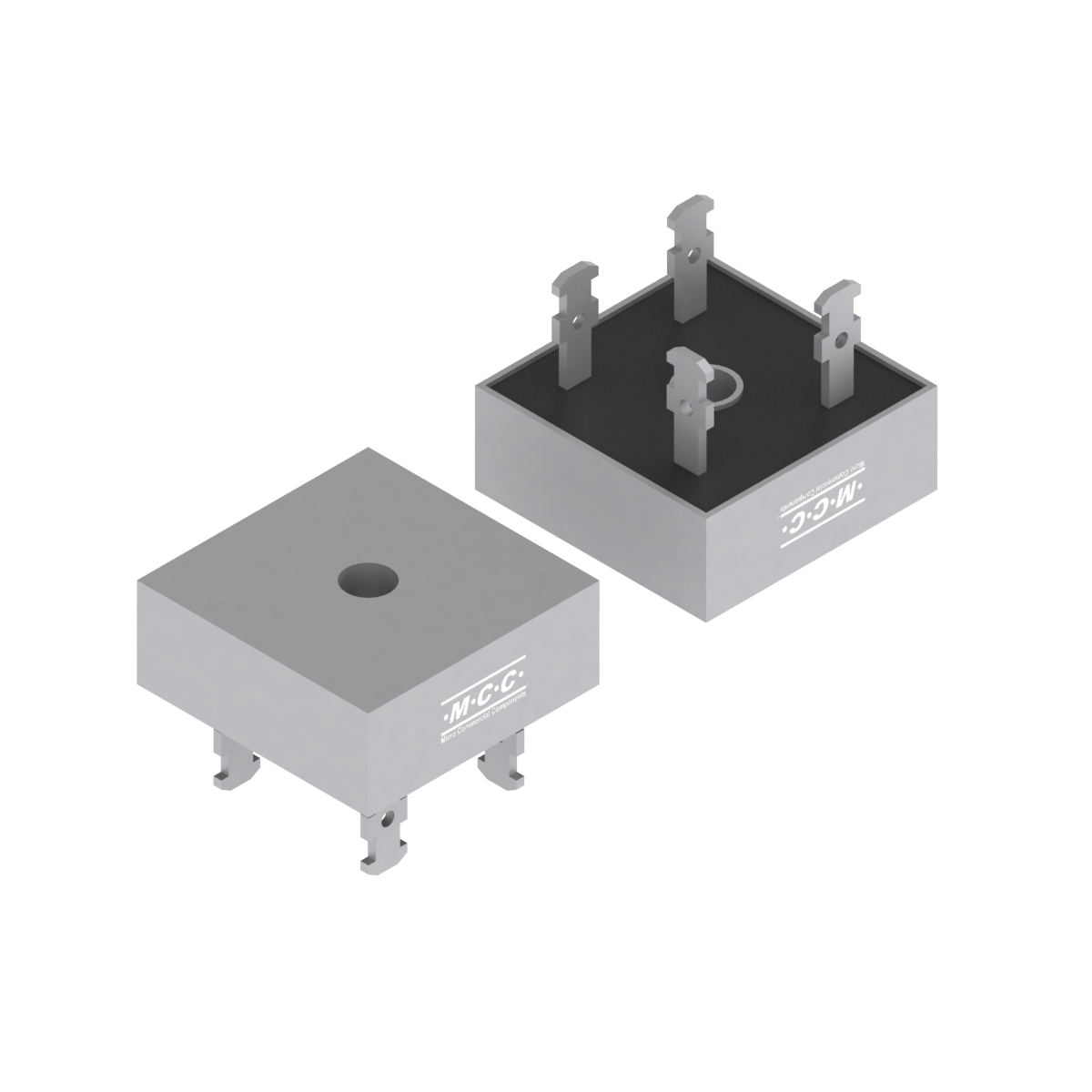

MB258

  • Package Type:MB-35
  • Packing Info:Bulk: 500Pcs/Ctn .;
  • Category:Bridge Rectifiers
  • MPN:MB258-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MB258 1-Phase Bridge 25 800 1.1 10 300 12.5 800 150
Part Number MB258 Number of Functions 1-Phase Bridge IF(AV)(A)  25 VRWM (V)  800 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  300 IF(A)  12.5 VR (V)  800 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MB258 MB-35 MB-35 24.0000 MB258

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
22483.04 5.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
