Bridge Rectifiers | Status : NRND

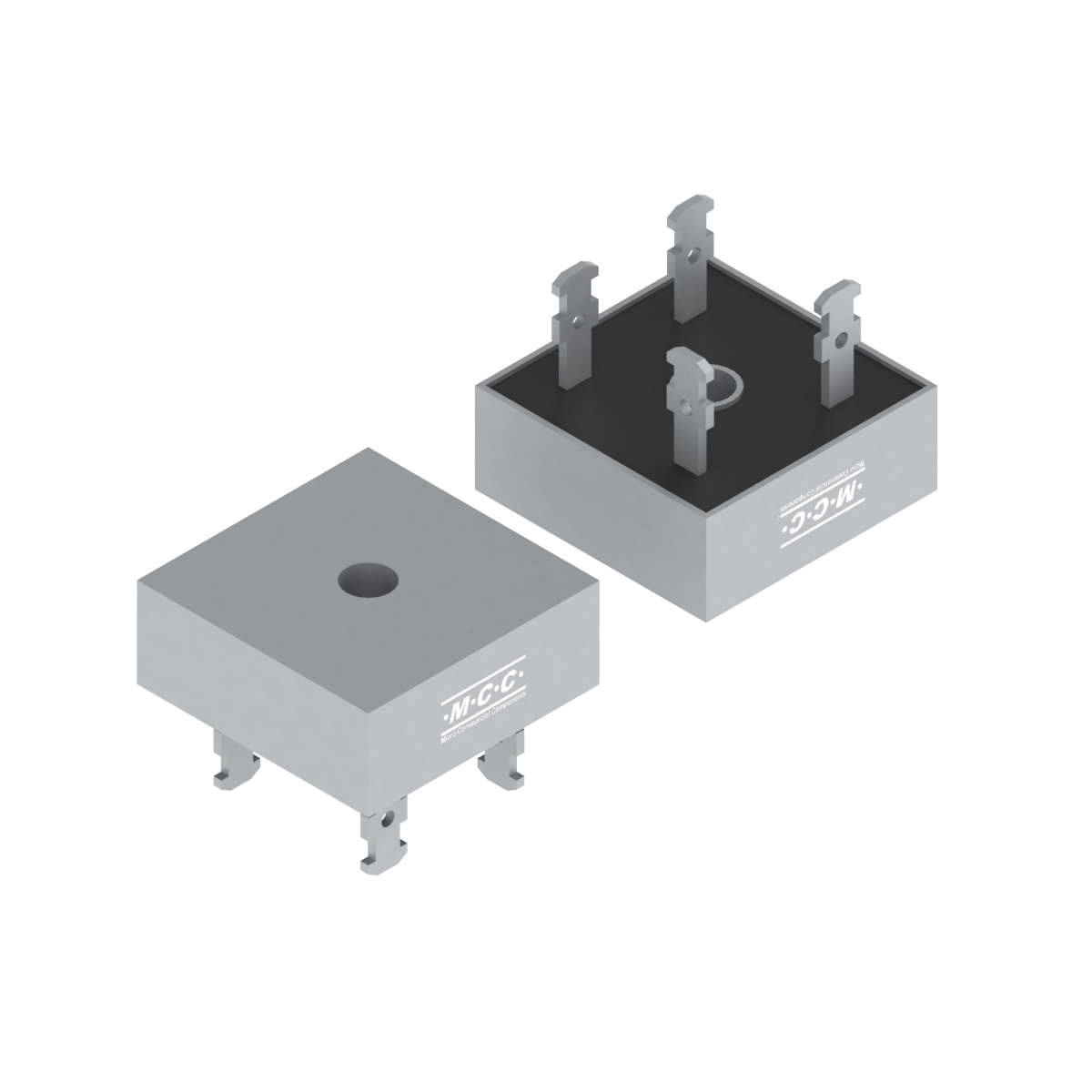

MB252

  • Package Type:MB-35
  • Packing Info:Bulk: 500Pcs/Ctn .;
  • Category:Bridge Rectifiers
  • MPN:MB252-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MB252 1-Phase Bridge 25 200 1.1 10 300 12.5 200 150
Part Number MB252 Number of Functions 1-Phase Bridge IF(AV)(A)  25 VRWM (V)  200 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  300 IF(A)  12.5 VR (V)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MB252 MB-35 MB-35 24.0000 MB252

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
22483.04 5.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
