Bridge Rectifiers | Status : Active

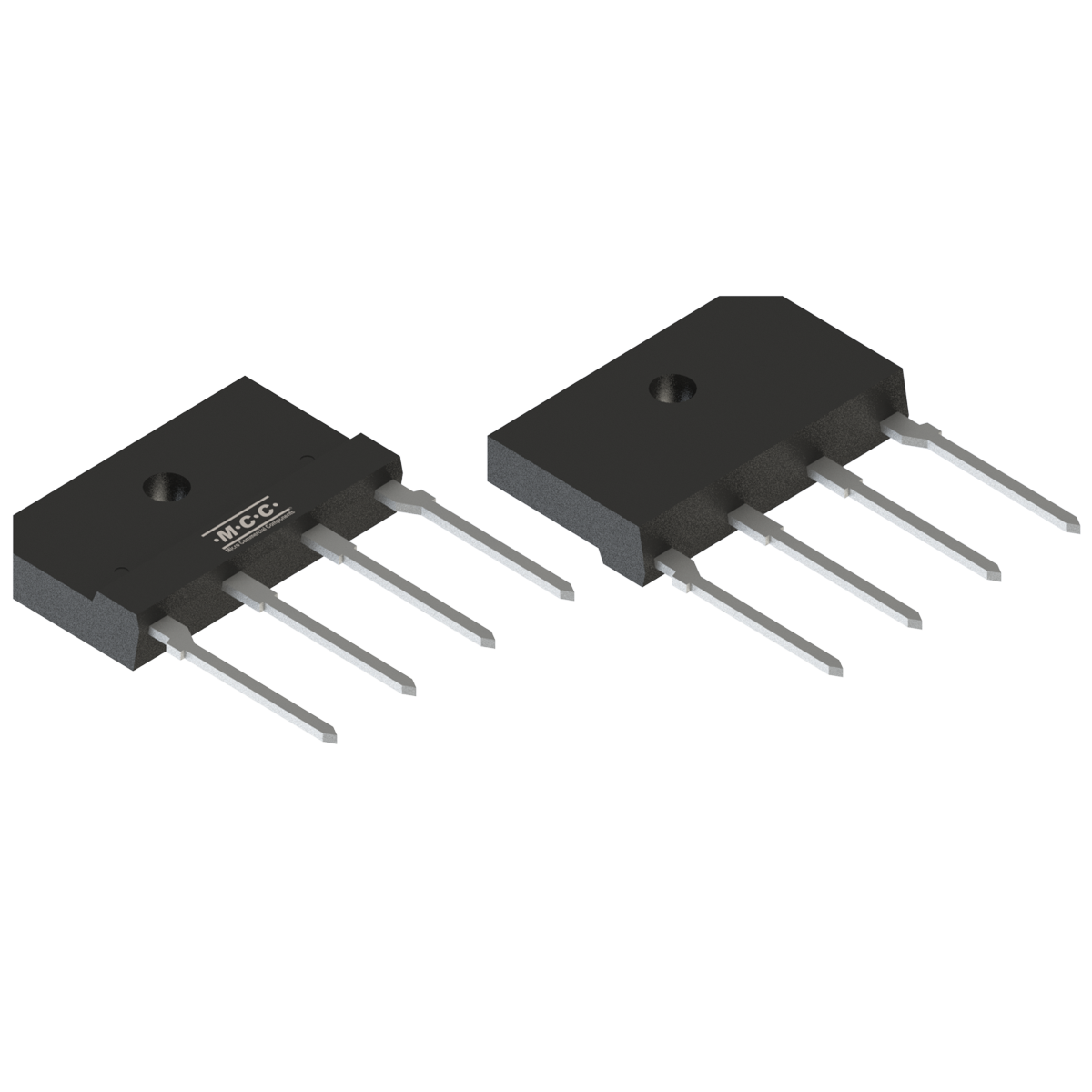

KBJ408G

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
KBJ408G 1-Phase Bridge 4 800 1 5 150 2 800 150
Part Number KBJ408G Number of Functions 1-Phase Bridge IF(AV)(A)  4 VRWM (V)  800 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  150 IF(A)  2 VR (V)  800 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
KBJ408G KBJ KBJ 4.6000 KBJ408G

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
