Bridge Rectifiers | Status : Active

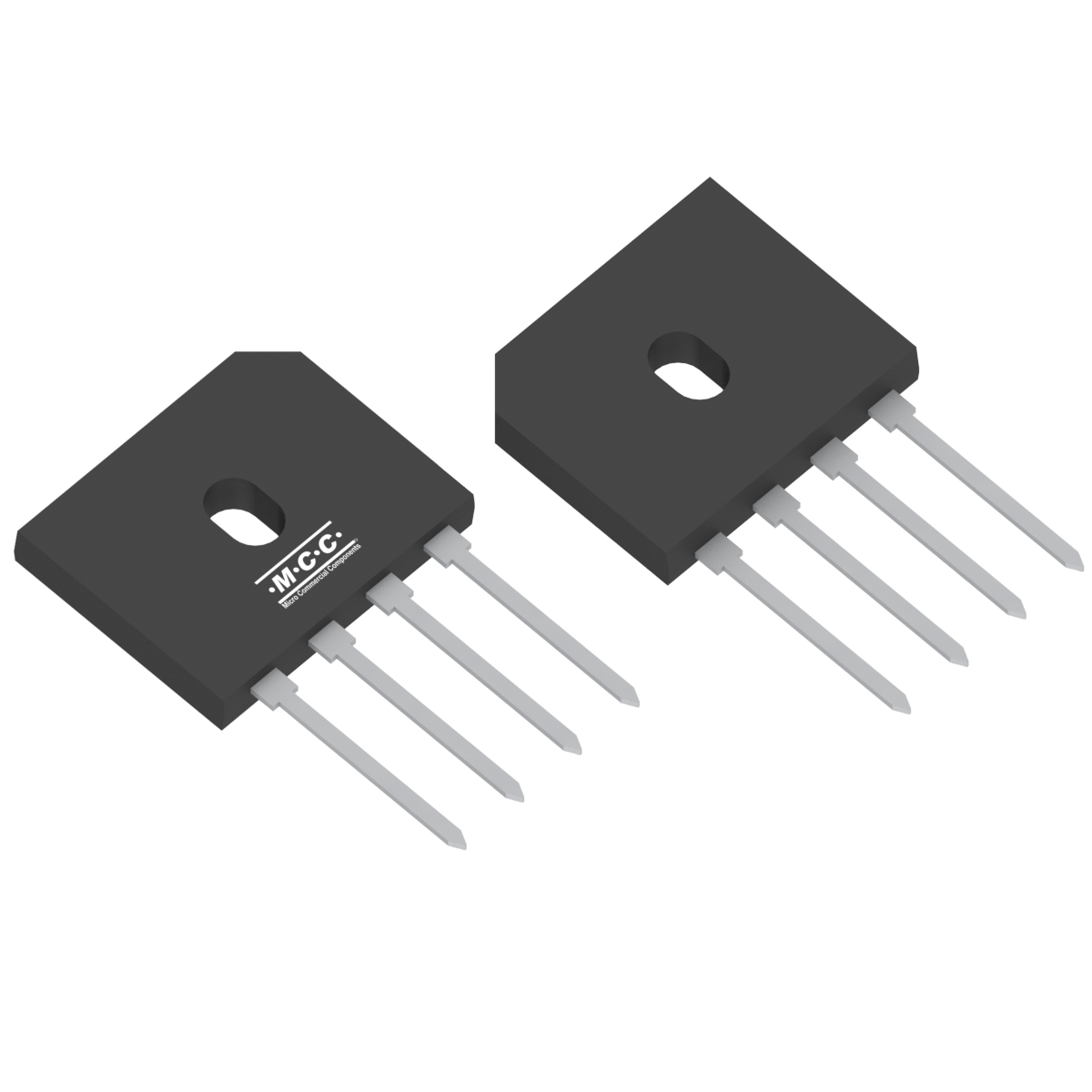

GBU5010

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBU5010 1-Phase Bridge 50 1000 1 5 500 25 1000
Part Number GBU5010 Number of Functions 1-Phase Bridge IF(AV)(A)  50 VRWM (V)  1000 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  500 IF(A)  25 VR (V)  1000 Tj [max] (°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBU5010 GBU GBU 4.0280 GBU5010

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report
