Bridge Rectifiers | Status : Active

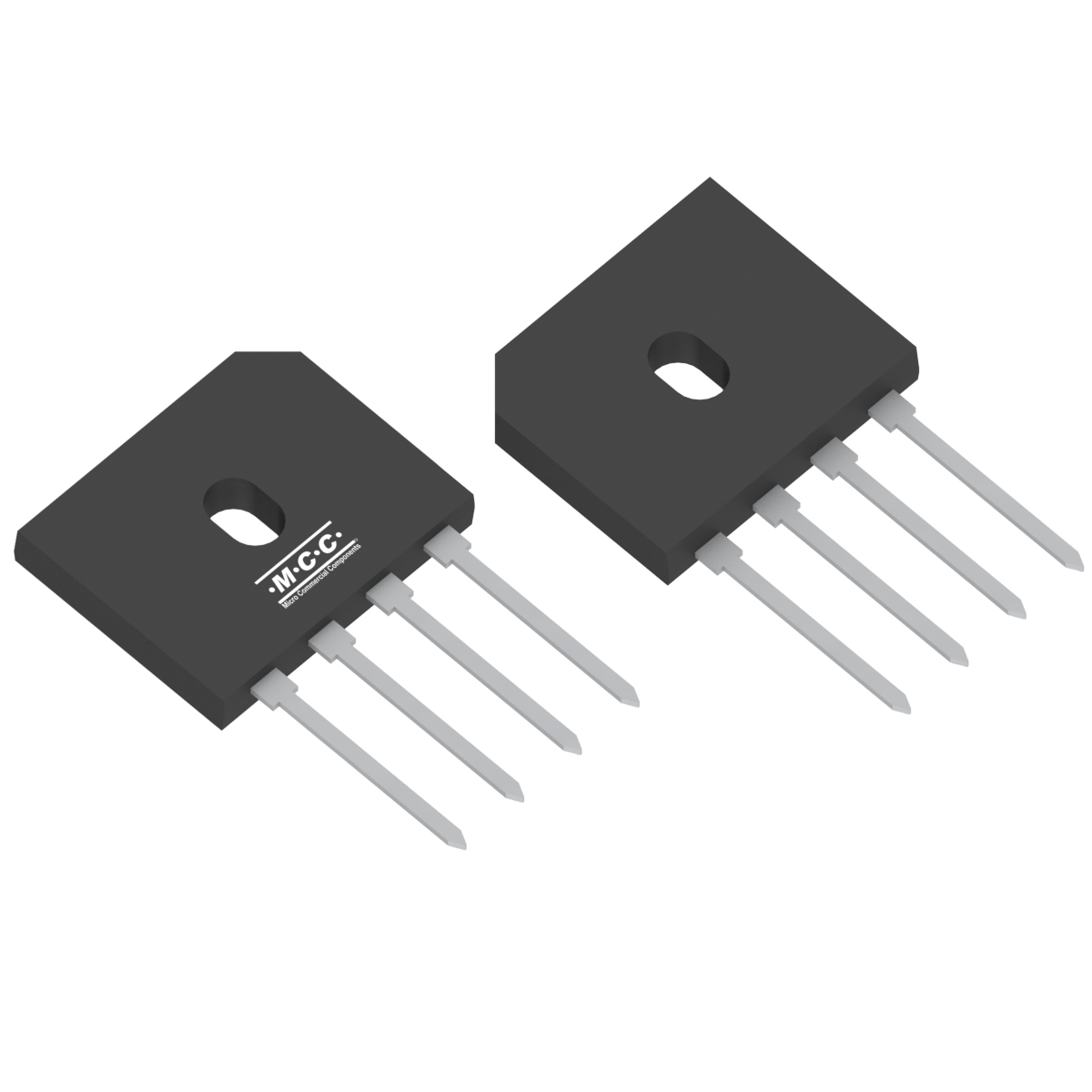

GBU2006

  • Package Type:GBU
  • Packing Info:Tube:20pcs/Tube, 1K/Box, 2K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:GBU2006-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBU2006 1-Phase Bridge 20 600 1.1 5 240 10 600 150
Part Number GBU2006 Number of Functions 1-Phase Bridge IF(AV)(A)  20 VRWM (V)  600 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5 		IFSM (A)  240 IF(A)  10 VR (V)  600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBU2006 GBU GBU 4.0280 GBU2006

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 22483.04 5.1
