Bridge Rectifiers | Status : Active

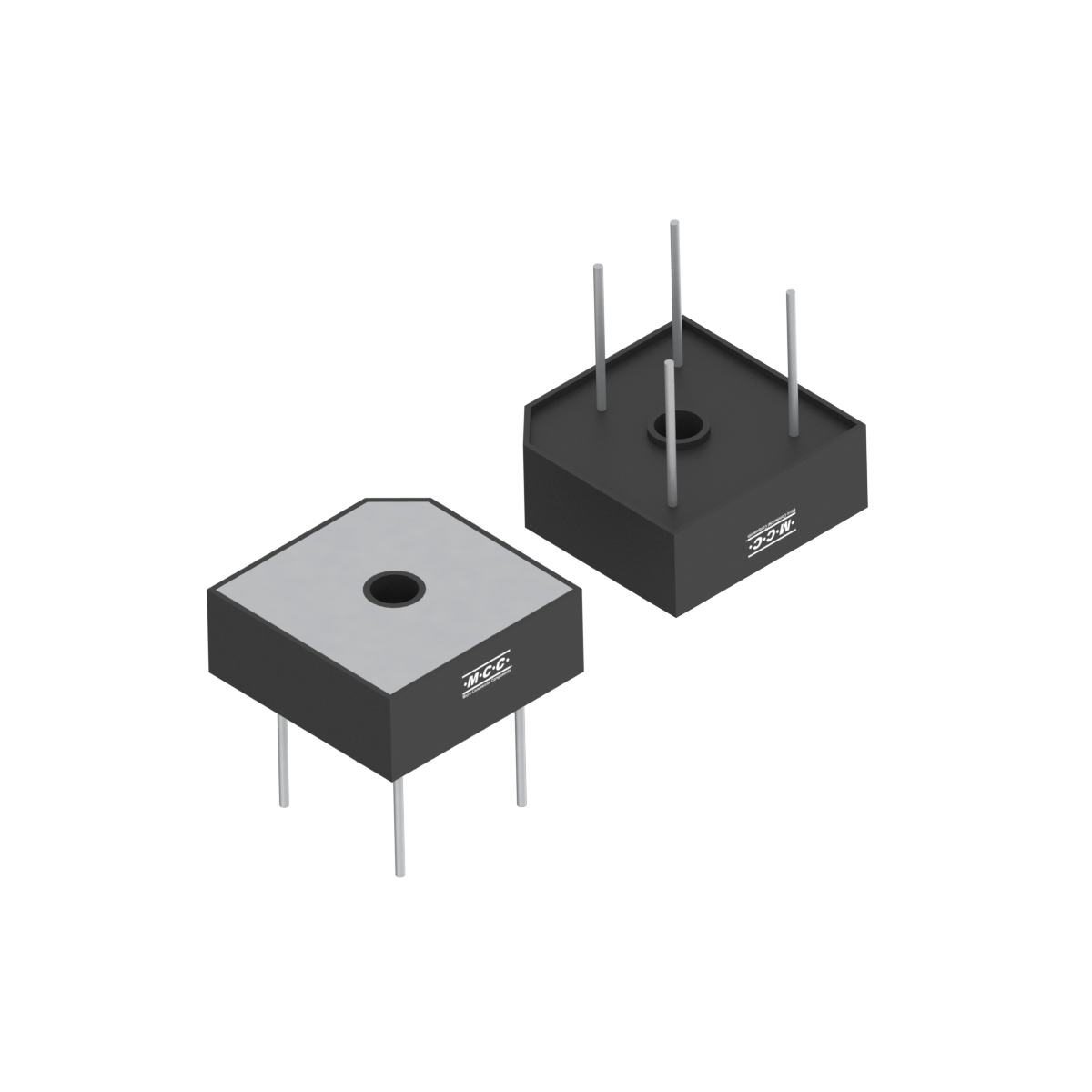

GBPC3506W

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBPC3506W 1-Phase Bridge 35 600 1.1 5 400 17.5 600 150
Part Number GBPC3506W Number of Functions 1-Phase Bridge IF(AV)(A)  35 VRWM (V)  600 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5 		IFSM (A)  400 IF(A)  17.5 VR (V)  600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBPC3506W GBPC-W GBPC-W 12.2400 GBPC3506W

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
051518-1 MCC will use laser mark instead of ink mark for power bridge rectifiers PDF 05/15/2018
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
