MCC Statement About Disruption in the Middle East

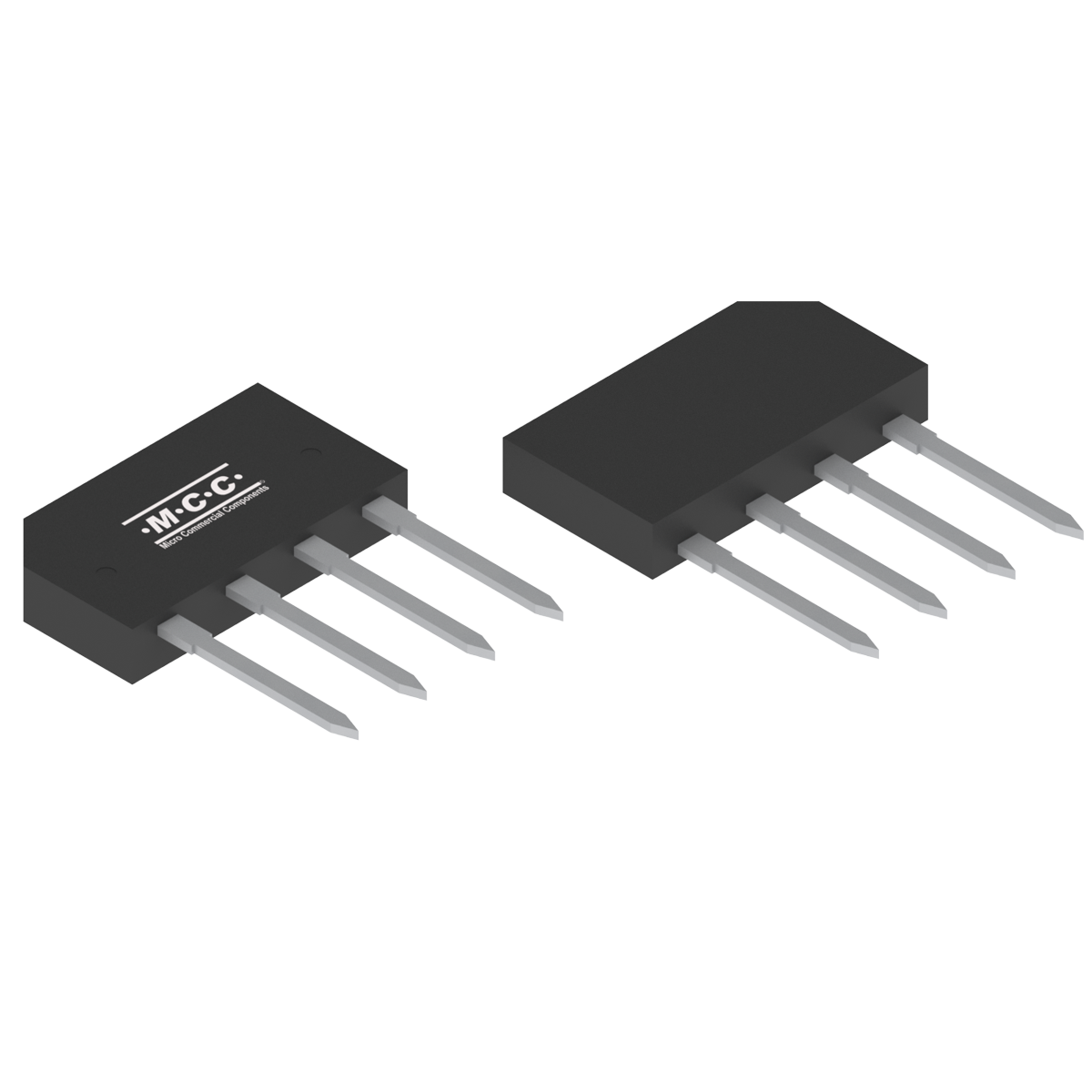

Bridge Rectifiers | Status : Active

GBL406-BPC01

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBL406-BPC01 1-Phase Bridge 4 600 1 5 150 2 600 150
Part Number GBL406-BPC01 Number of Functions 1-Phase Bridge IF(AV)(A)  4 VRWM (V)  600 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  150 IF(A)  2 VR (V)  600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBL406-BPC01 GBL GBL 2.2000 GBL406

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 22483.04 5.1
