Bridge Rectifiers | Status :
Obsoleted

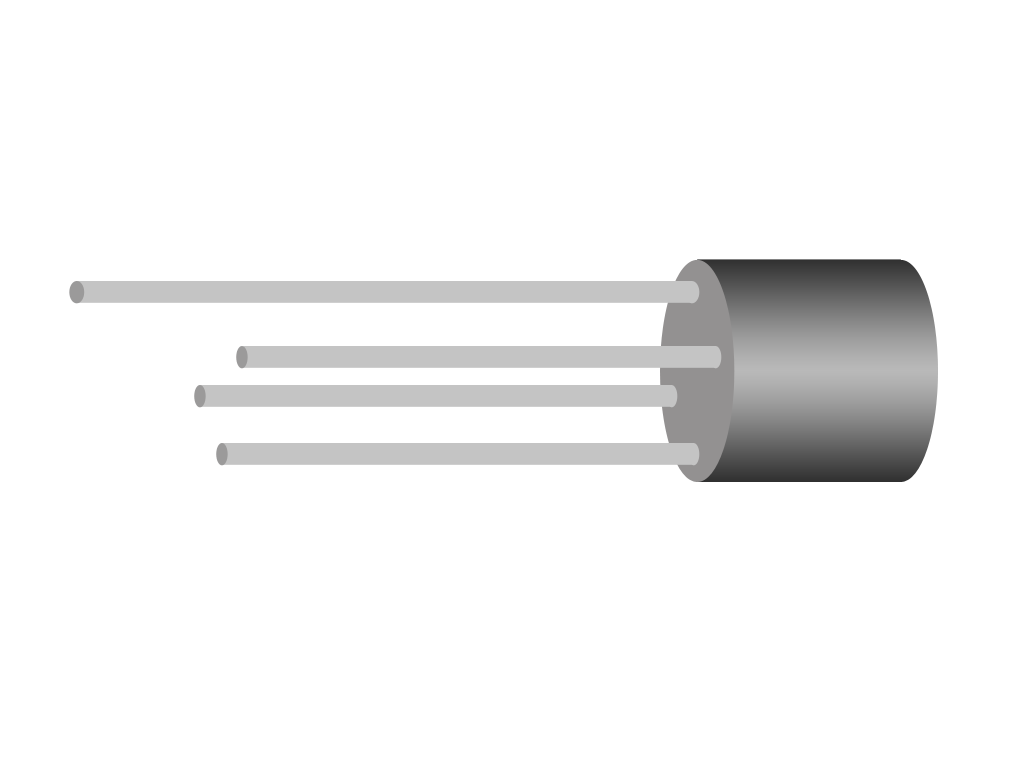

2W10
Last Time Ship Date:N/A
EOL Notice
- Package Type:WOL
- Packing Info:Bulk: 1K/Box, 10K/Ctn;
- Category:Bridge Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| 2W10 | 1-Phase Bridge | 2 | 1000 | 1.1 | 10 | 60 | 2 | 1000 | 125 |
| Part Number 2W10 | Number of Functions 1-Phase Bridge | IF(AV)(A) 2 | VRWM (V) 1000 |
VF (V) [max]@IF(A) 1.1 |
IR (uA) [max] @ VR 10 |
IFSM (A) 60 | IF(A) 2 | VR (V) 1000 | Tj [max] (°C) 125 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) |
|---|---|---|---|
| 2W10 | WOL |
WOL
|
1.3000 |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
