Super Fast Recovery Rectifiers | Status : Active

MUR6040B

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MUR6040B Single 60 400 1.7 10 0.075 500 60 400 150
Part Number MUR6040B Number of Functions Single IF(AV)(A)  60 VRWM (V)  400 VF
(V) [max]@IF(A)  1.7 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.075 IFSM (A)  500 IF(A)  60 VR (V)  400 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

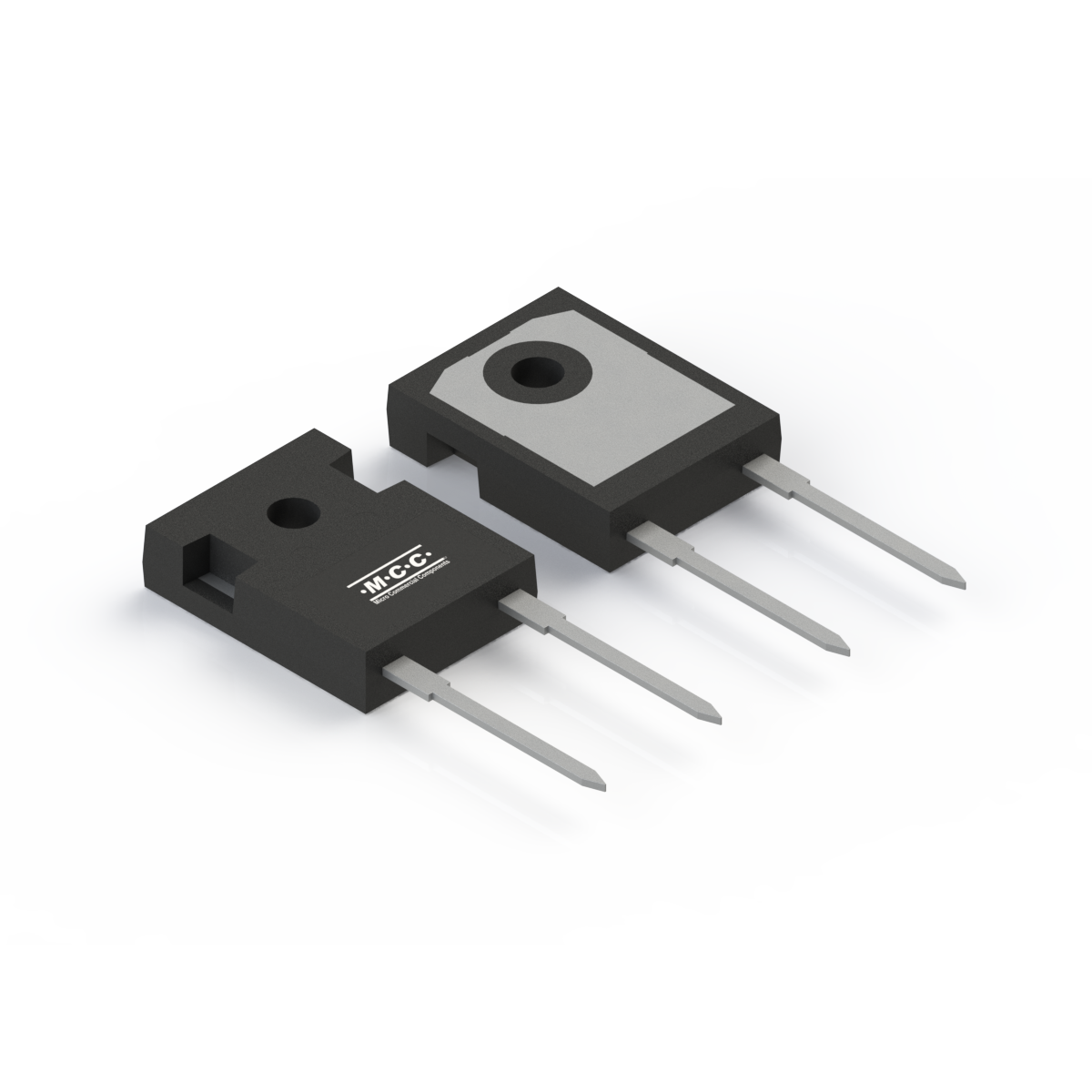

MUR6040B TO-247AD TO-247AD 4.0500 MUR6040B

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 7494.35 15.2
