Super Fast Recovery Rectifiers | Status : Active

MUR3060BS

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MUR3060BS Single 30 600 1.8 5 0.033 300 30 600 150
Part Number MUR3060BS Number of Functions Single IF(AV)(A)  30 VRWM (V)  600 VF
(V) [max]@IF(A)  1.8 		IR (uA)  [max] @
VR  5 		TRR (μs)  0.033 IFSM (A)  300 IF(A)  30 VR (V)  600 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

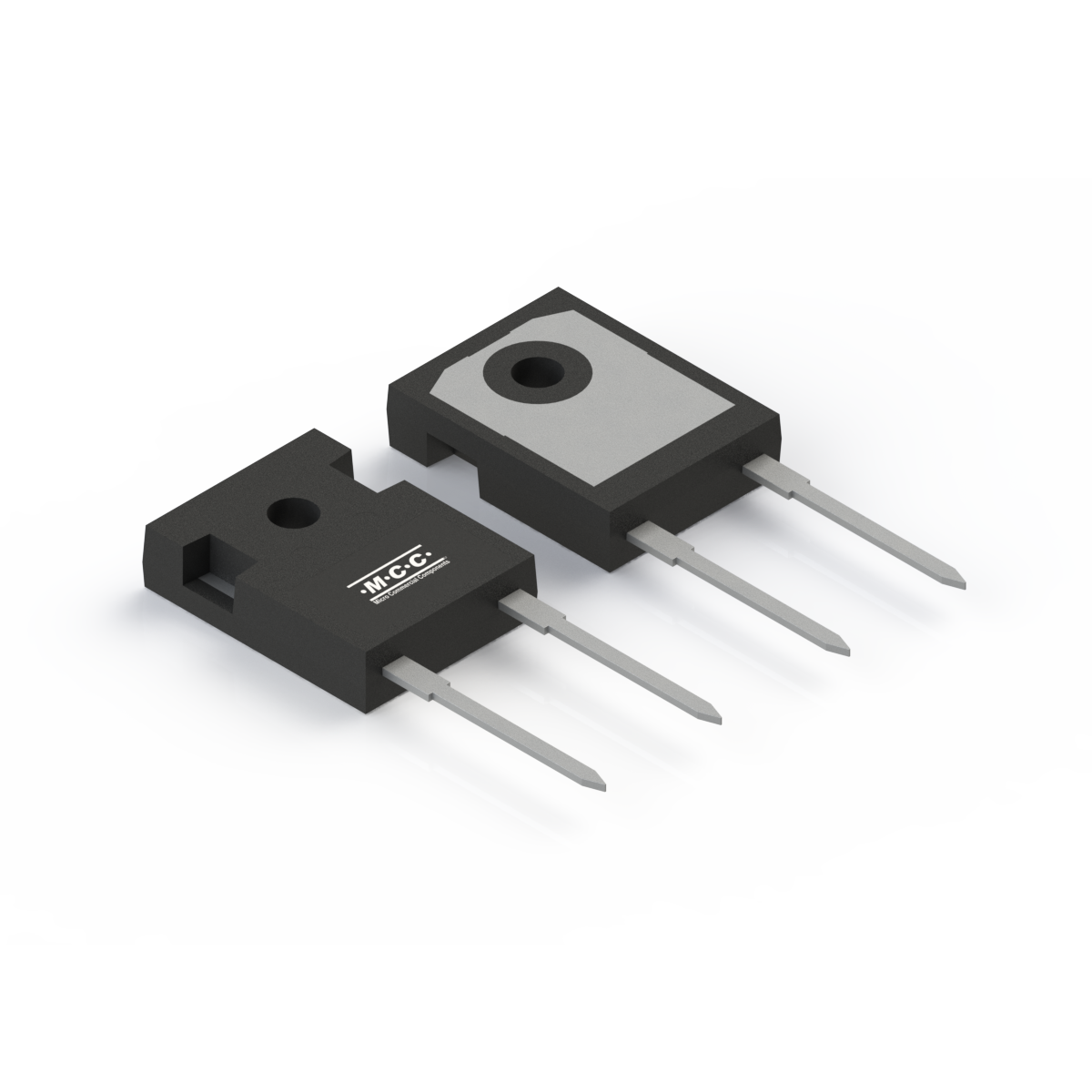

MUR3060BS TO-247AD TO-247AD 4.0500 MUR3060BS

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 7494.35 15.2
