Power MOSFETS | Status :
Obsoleted
MSJW20N65
Last Time Ship Date:05-15-2023
EOL Notice

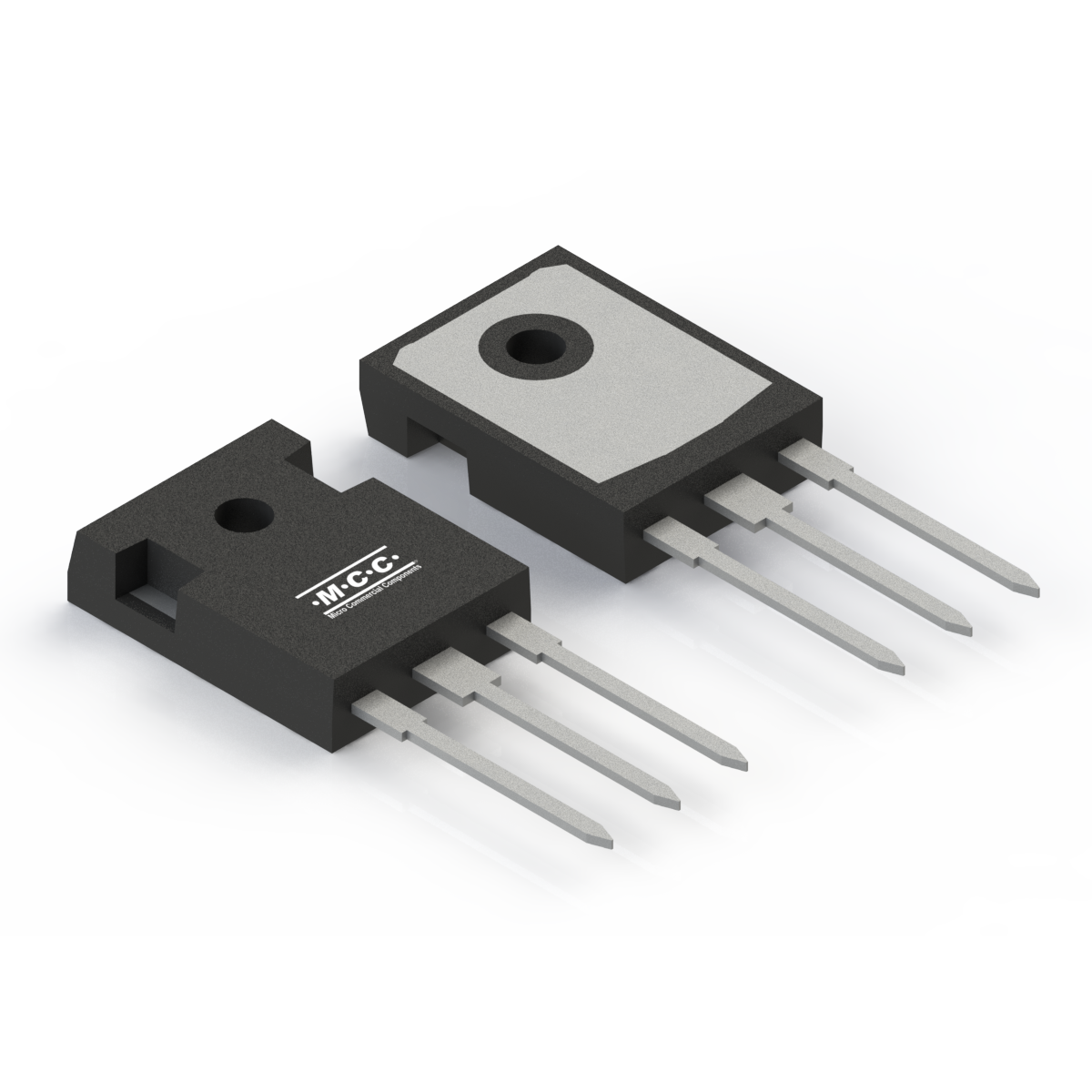

- Package Type:TO-247
- Packing Info: Bulk: 360pcs/Box;
- Category:Power MOSFETS
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MSJW20N65 | Single | N | 650 | ±30 | 20 | 0.17 | 2.5 | 4.5 | No | 150 | 484 | 60 | 1724 | 61 | 39 | 15 |
| Part Number MSJW20N65 | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 650 |
Gate-Source Voltage VGS (V) ±30 |
Drain Current ID (A) 20 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.17 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 2.5 |
Gate Threshold Voltage VGS(th) Max (V) 4.5 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 484 |
Pulsed Drain Current IDM(A) 60 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report |
|---|
|
