Standard Recovery Power Modules | Status : Active

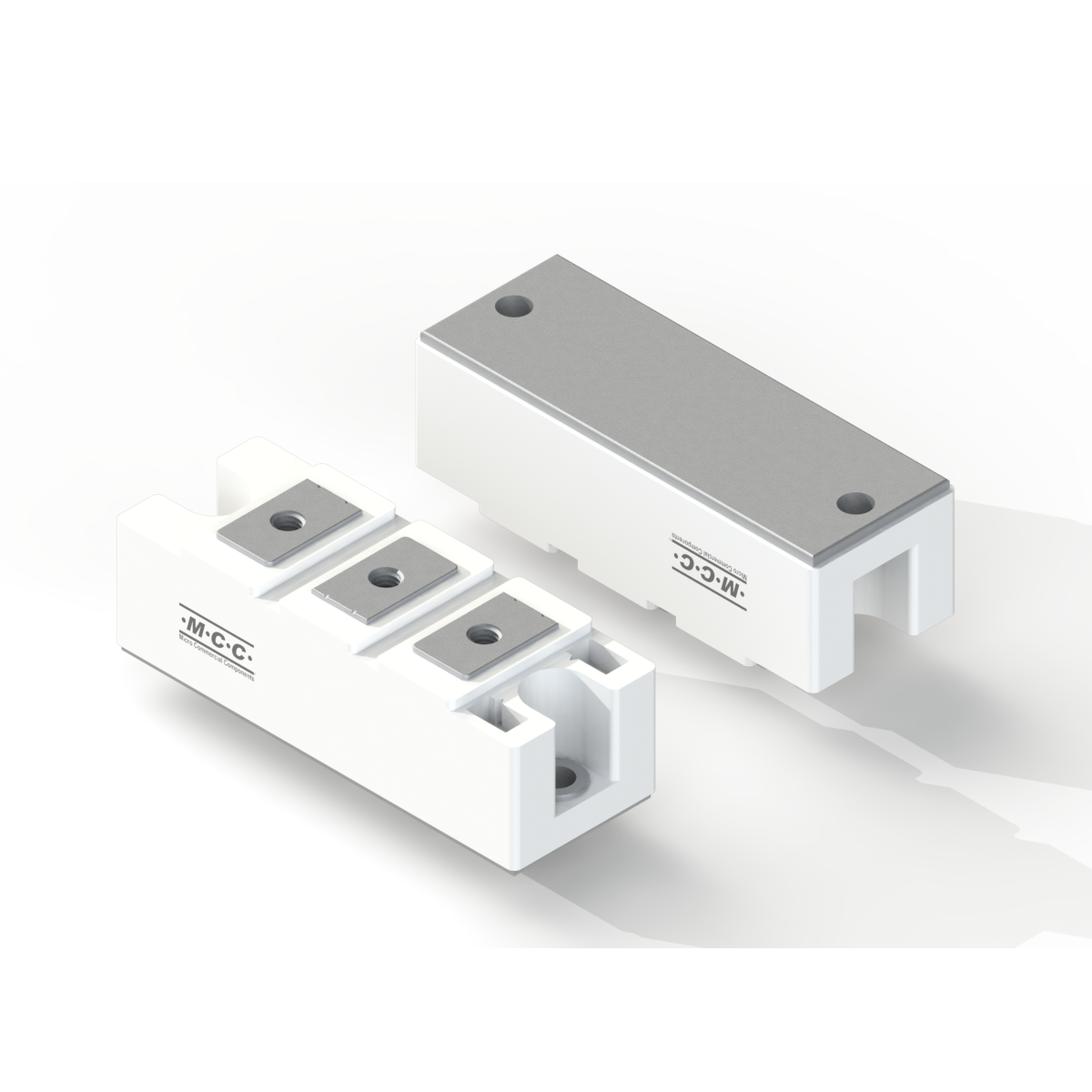

MD240C08D2

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions VRRM (V) IF(AV)(A)@Tc (°C) IFSM (A) VFM (V) IF(A) IRD (mA) VRD (V) Tc (°C) TVj [max] (°C)
MD240C08D2 Dual 800 240 7550 1.25 300 9 800 95 150
Part Number MD240C08D2 Number of Functions Dual VRRM (V)  800 IF(AV)(A)@Tc (°C)  240 IFSM (A)  7550 VFM (V)  1.25 IF(A)  300 IRD (mA)  9 VRD (V)  800 Tc (°C)  95 TVj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MD240C08D2 D2 D2 160.0000 MD240C08D2

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
7494.35 15.2
