Small Signal Bipolar Transistors | Status : Active

BC847VPN

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
BC847VPN Dual NPN+PNP 0.2 45 0.1 200 450 0.25 100 150
Part Number BC847VPN Number of Functions Dual Polarity NPN+PNP PD (W)  0.2 VCEO(V)  45 IC (A)  0.1 HFE [min]  200 HFE [max]  450 VCE(sat) [max]
(V)  0.25 		fT(MHz)  100 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

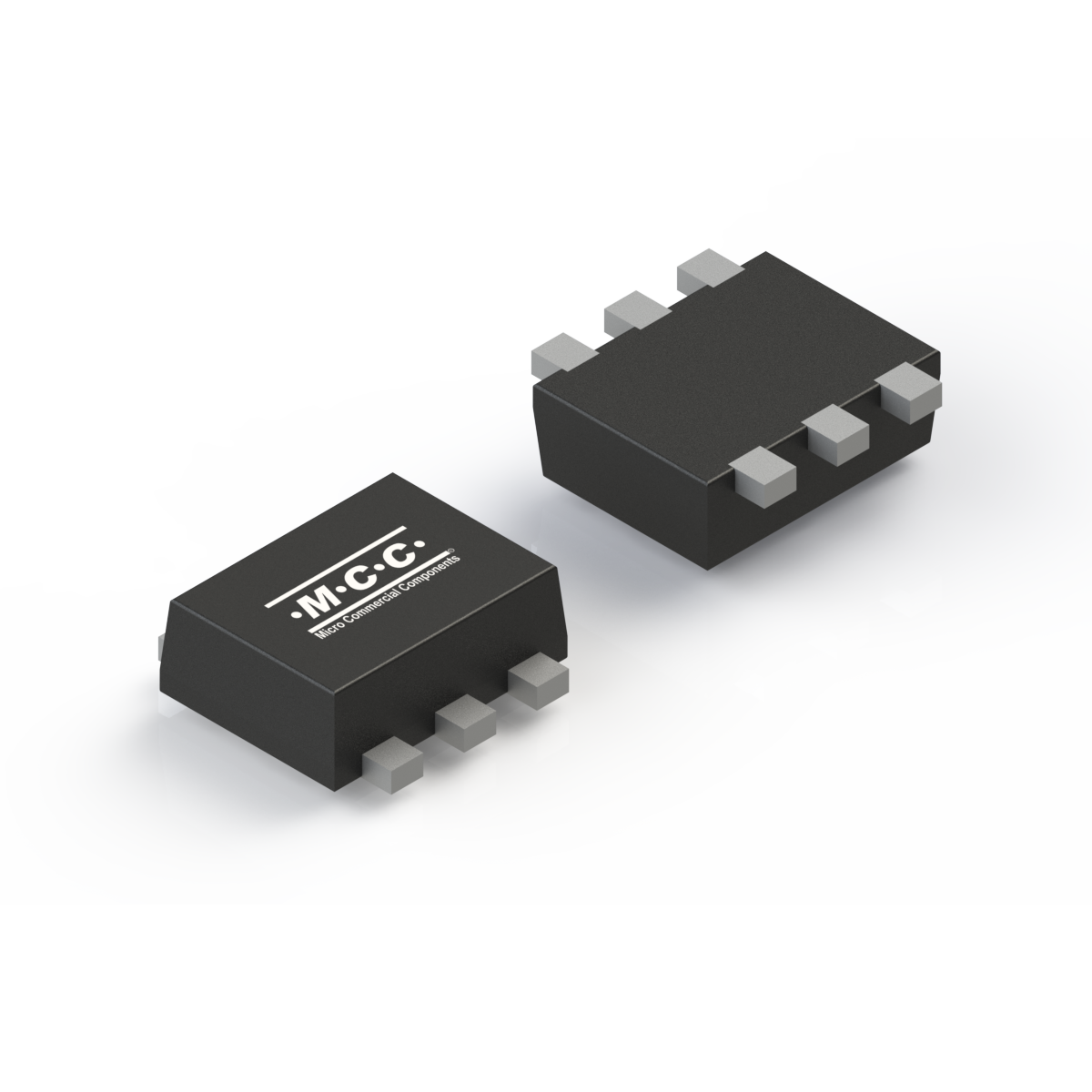

BC847VPN SOT-563 SOT-563 0.0030 7P Tape&Reel:3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free
Tin Whisker Test Report Halogen Free
