ESD Protection Devices | Status :
Active
ESDULC0524P5

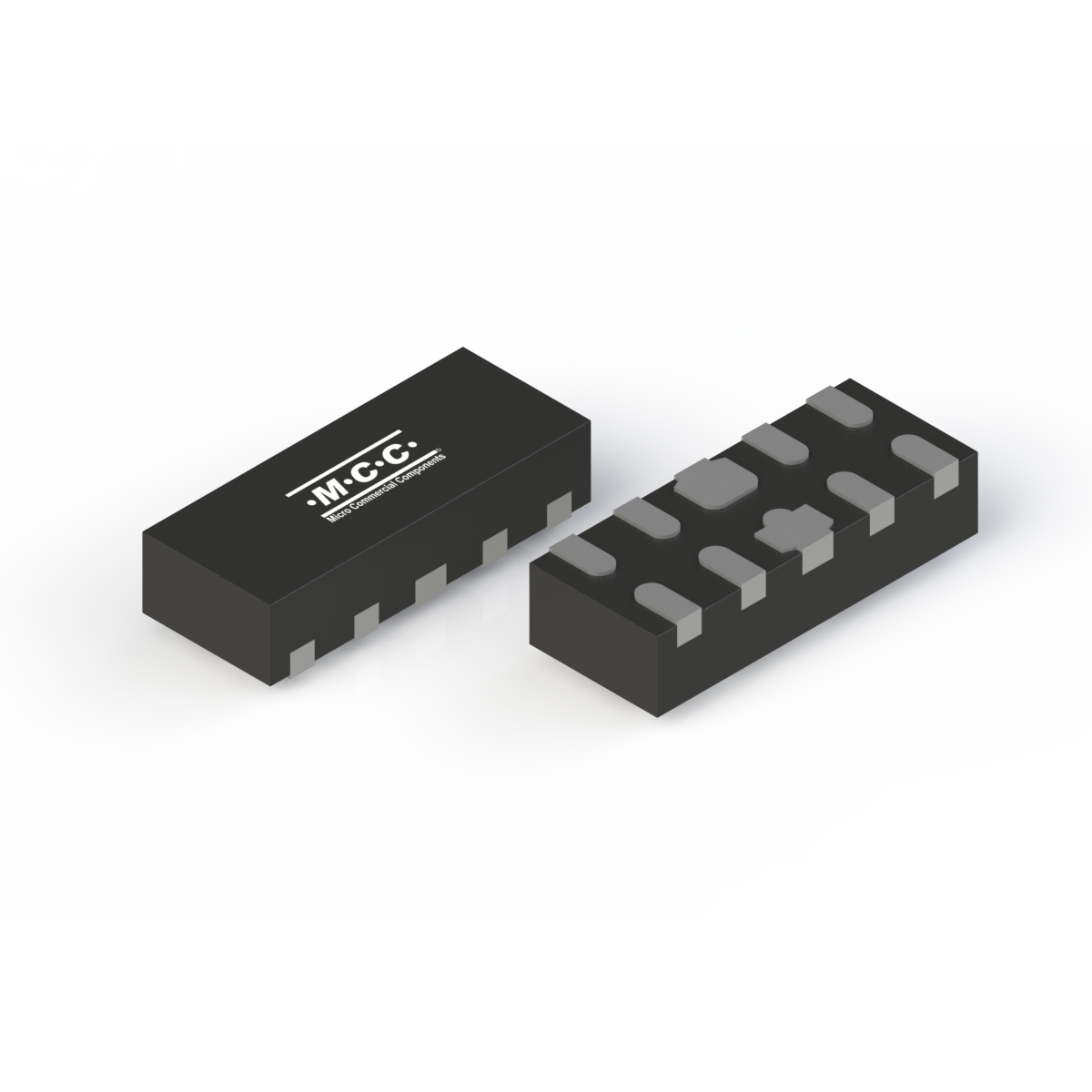

- Package Type:DFN2510-10
- Packing Info: Tape&Reel: 3Kpcs/Reel;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDULC0524P5 | 4 | Unidirectional | 5 | 4.5 | 12 | 0.4 | 54 | 0.1 | 7 | 125 | ±20 |
| Part Number ESDULC0524P5 | Number of Functions 4 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 5 |
Peak Pulse Current IPP(A) 4.5 |
Max. Clamping Voltage VC (V) 12 |
Junction Capacitance CJ(pF) 0.4 |
Peak Pluse Power Dissipation PPPK (W) 54 |
Maximum Reverse Leakage IR (uA) 0.1 |
Breakdown Voltage Min VBR(V) 7 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±20 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDULC0524P5 | DFN2510-10 | DFN2510-10 | 0.0040 | 1105 | Tape&Reel: 3Kpcs/Reel; |
Environmental Information
Download
| Halogen Free |
|---|
|
