Bridge Rectifiers | Status : NRND

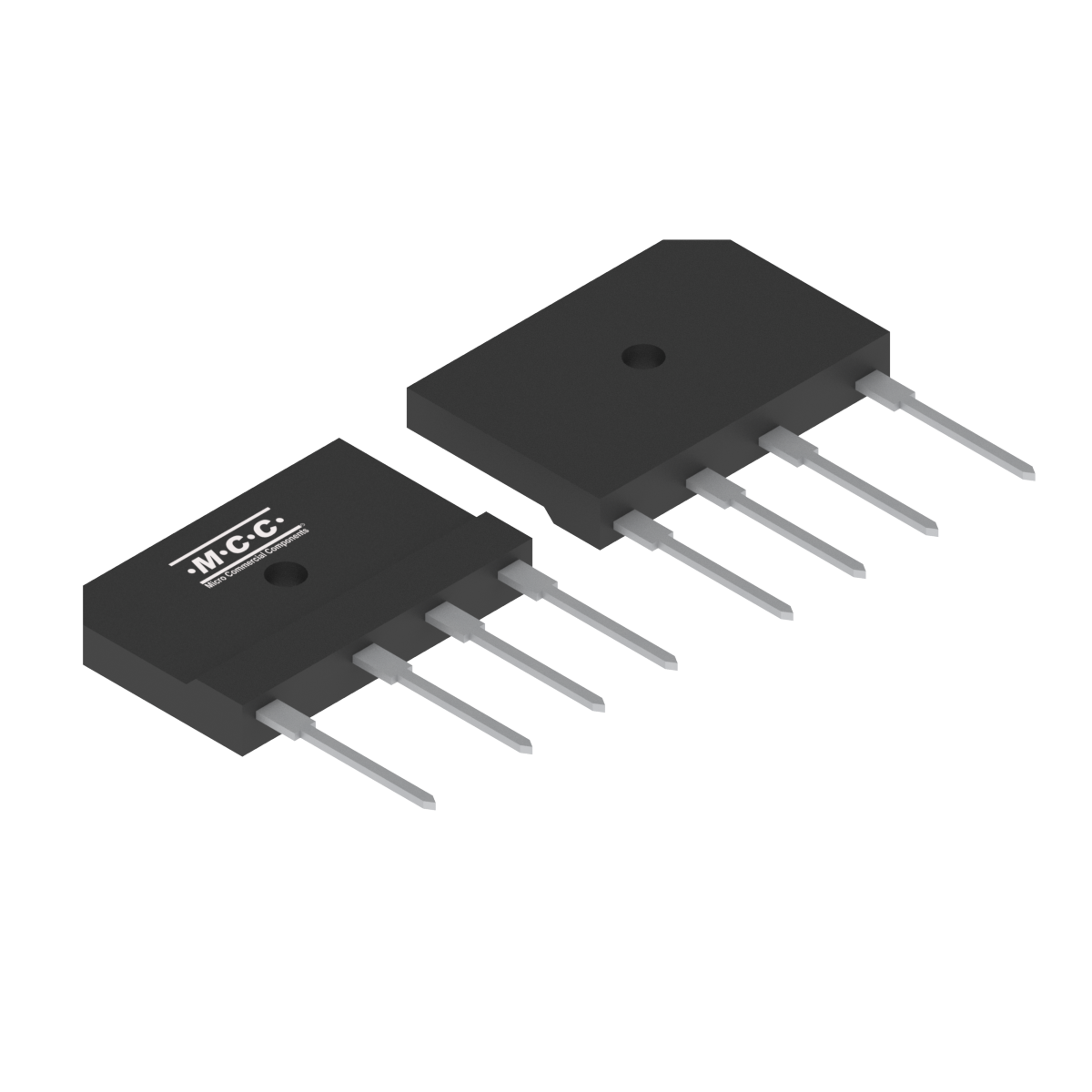

GBJ2501

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBJ2501 1-Phase Bridge 25 100 1 10 350 12.5 100
Part Number GBJ2501 Number of Functions 1-Phase Bridge IF(AV)(A)  25 VRWM (V)  100 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  10 		IFSM (A)  350 IF(A)  12.5 VR (V)  100 Tj [max] (°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBJ2501 GBJ GBJ 6.8730 GBJ2501

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
